Custom Multipurpose Three Phase Asynchronous Motor

Home / Products / Three Phase Asynchronous Motor / IE3 Series Three Phase Asynchronous Motor / Multipurpose Three Phase Asynchronous Motor
Multipurpose Three Phase Asynchronous Motor

Multipurpose Three Phase Asynchronous Motor

  • Multipurpose Three Phase Asynchronous Motor
Contact Us
  • Describe
    Model Rated Output Rated
    Speed(r/min)    		 EFF
    (%)    		 Power
    Factor
    (CosΦ)    		 Current
    (A)
    380V/50Hz    		 Rated
    Torque
    (r/min)    		 Tst/Tn Tmax/Tn Ist/In
    KW HP
    IE3-801-2 0.75 1 2875 80.7 0.83 1.77 2.49 2.5 3 5.3
    IE3-802-2 1.1 1.5 2875 82.7 0.84 2.5 3.65 3.2 3.8 7
    IE3-90S-2 1.5 2 2890 84.2 0.84 3.32 4.96 2.7 3.5 7.1
    IE3-90L-2 2.2 3 2890 85.9 0.85 4.72 7.27 2.4 3 6.9
    IE3-100L-2 3 4 2891 87.1 0.87 6.17 9.91 3.2 4 8
    IE3-112M-2 4 5.5 2914 88.1 0.88 8.04 13.11 2.5 3 7.5
    IE3-132S1-2 5.5 7.5 2937 89.2 0.86 11.2 17.88 2.7 3.5 7.5
    IE3-132S2-2 7.5 10 2940 90.1 0.88 14.6 24.36 2.4 3.3 7.5
    IE3-160M1-2 11 15 2930 91.2 0.89 21 35.85 2.2 2.9 7.6
    IE3-160M2-2 15 20 2930 91.9 0.89 28.4 48.89 2.3 3 7.6
    IE3-160L-2 18.5 25 2937 92.4 0.89 34.7 60.15 2.3 3.1 7.4
    IE3-180M-2 22 30 2940 92.7 0.88 41.6 71.12 2.8 3.2 7.8
    IE3-200L1-2 30 40 2950 93.3 0.88 56.2 97.12 2.6 3 7.8
    IE3-200L2-2 37 50 2950 93.7 0.89 68.2 119.78 2.6 3 7.7
    IE3-225M-2 45 60 2960 94 0.89 82.5 145.19 2.4 2.6 7.5
    IE3-250M-2 55 75 2965 94.3 0.9 99.5 177.15 2.3 2.8 7.1
    IE3-280S-2 75 100 2970 94.7 0.9 135 241.16 2.5 2.8 7.4
    IE3-280M-2 90 125 2970 95 0.91 160 289.39 2.8 2.8 7.6
    IE3-315S-2 110 150 2975 95.2 0.91 194 353.11 2.4 2.8 6.9
    IE3-315M-2 132 180 2975 95.4 0.91 233 423.73 2.6 2.9 7.1
    IE3-315L1-2 160 200 2975 95.6 0.92 278 513.61 2.5 2.9 7.1
    IE3-315L2-2 200 270 2975 95.8 0.92 348 642.02 2.5 2.8 6.9
    IE3-355M-2 250 340 2980 95.8 0.92 434 801.17 2.5 2.8 7
    IE3-355L-2 315 430 2980 95.8 0.92 547 1009.48 2.5 2.9 7

    Model Rated Output Rated
    Speed(r/min)    		 EFF
    (%)    		 Power
    Factor
    (CosΦ)    		 Current
    (A)
    380V/50Hz    		 Rated
    Torque
    (r/min)    		 Tst/Tn Tmax/Tn Ist/In
    KW HP
    IE3-802-4 0.75 1 1400 82.5 0.76 1.88 5.12 2.4 2.9 5
    IE3-90S-4 1.1 1.5 1440 84.1 0.77 2.66 7.3 3 3.5 6
    IE3-90L-4 1.5 2 1445 85.3 0.77 3.57 9.91 3.2 3.8 6.8
    IE3-100L1-4 2.2 3 1440 86.7 0.87 4.88 14.6 3 3.5 7
    IE3-100L2-4 3 4 1440 87.7 0.82 6.5 19.9 2.6 3.3 7
    IE3-112M-4 4 5.5 1445 88.6 0.82 8.55 26.4 3.5 4 7.5
    IE3-132S-4 5.5 7.5 1455 89.6 0.83 11.5 36.1 2.2 2.8 6.4
    IE3-132M-4 7.5 10 1455 90.4 0.84 15.3 49.2 2.4 3 7
    IE3-160M-4 11 15 1460 91.4 0.84 22.1 71.9 2.5 2.9 6.9
    IE3-160L-4 15 20 1460 92.1 0.85 29.6 98.1 2.5 3 7.5
    IE3-180M-4 18.5 25 1470 92.6 0.86 35.8 120.2 2.6 3.1 7.8
    IE3-180L-4 22 30 1470 93 0.86 41.8 142.9 2 2.3 7.8
    IE3-200L-4 30 40 1470 93.6 0.86 57.3 194.9 2.4 2.9 7.1
    IE3-225S-4 37 50 1480 93.9 0.87 69.7 238.8 2.5 2.7 7.5
    IE3-225M-4 45 60 1480 94.2 0.87 84.3 290.4 2.5 2.8 7.6
    IE3-250M-4 55 75 1480 94.6 0.87 103 354.9 2.6 2.7 7.3
    IE3-280S-4 75 100 1480 95 0.87 139 484 2.7 2.7 7.6
    IE3-280M-4 90 125 1480 95.2 0.87 167 580.7 2.7 2.7 7.5
    IE3-315S-4 110 150 1485 95.4 0.88 201 707.4 2.7 2.9 7.1
    IE3-315M-4 132 180 1485 95.6 0.88 240 848.9 2.7 2.9 7.3
    IE3-315L1-4 160 200 1485 95.8 0.89 288 1029 3 3 7.4
    IE3-315L2-4 200 270 1485 96 0.89 359 1286 3 3 7.6
    IE3-355M-4 250 340 1490 96 0.9 443 1602 2.8 2.9 7.5
    IE3-355L-4 315 430 1490 96 0.9 559 2019 2.6 2.8 7.4

    Model Rated Output Rated
    Speed(r/min)    		 EFF
    (%)    		 Power
    Factor
    (CosΦ)    		 Current
    (A)
    380V/50Hz    		 Rated
    Torque
    (r/min)    		 Tst/Tn Tmax/Tn Ist/In
    KW HP
    IE3-90S-6 0.75 1 934 78.9 0.72 2.08 7.67 2.2 2.4 4.5
    IE3-90L-6 1.1 1.5 945 81 0.72 2.97 11.1 2.4 2.6 4.5
    IE3-100L-6 1.5 2 945 82.5 0.75 3.8 15.2 1.8 2.2 4.2
    IE3-112M-6 2.2 3 960 84.3 0.76 5.37 21.9 2.3 2.8 4.5
    IE3-132S-6 3 4 964 85.6 0.76 7.19 29.7 1.8 2.4 4.5
    IE3-132M1-6 4 5.5 965 86.6 0.76 9.43 39.6 2.3 2.7 5
    IE3-132M2-6 5.5 7.5 965 88 0.77 12.6 54.4 1.9 2.8 5.5
    IE3-160M-6 7.5 10 970 89.1 0.78 16.7 73.8 2 3 6.5
    IE3-160L-6 11 15 970 90.3 0.78 24.1 108.3 2.4 3.3 7.5
    IE3-180L-6 15 20 975 91.2 0.81 31.4 146.9 2 2.7 6.4
    IE3-200L1-6 18.5 25 980 91.7 0.81 38.3 180.3 2.3 3 7
    IE3-200L2-6 22 30 980 92.2 0.83 44.3 214.4 2.3 2.8 7
    IE3-225M-6 30 40 980 92.9 0.84 59.2 292.3 2.2 2.7 6.5
    IE3-250M-6 37 50 980 93.3 0.86 70.8 360.6 2.5 2.7 6.9
    IE3-280S-6 45 60 980 93.7 0.86 85.8 438.5 2.2 2.4 7
    IE3-280M-6 55 75 980 94.1 0.86 104 536 2.4 2.5 7.1
    IE3-315S-6 75 100 985 94.6 0.86 141 727.2 2.8 3 7.3
    IE3-315M-6 90 125 985 94.9 0.86 169 872.6 2.7 2.9 7.1
    IE3-315L1-6 110 150 985 95.1 0.86 206 1066 2.9 2.9 7.4
    IE3-315L2-6 132 180 985 95.4 0.87 243 1280 3 3.1 7.6
    IE3-355M1-6 160 200 990 95.6 0.88 291 1543 3.1 3.1 7.6
    IE3-355M2-6 200 270 990 95.8 0.88 363 1929 3 3 7.8
    IE3-355L-6 250 340 990 95.8 0.88 454 2412 3.1 3 7.7
  • Specification
Company
Wenling Guanfeng Electromechanical Co., Ltd.
Wenling Guanfeng Electromechanical Co., Ltd. stands as a leading integrated industrial and trading enterprise specializing in developing a diverse portfolio of OEM/ODM Multipurpose Three Phase Asynchronous Motor and Multipurpose Three Phase Asynchronous Motor Supplier. Our comprehensive product range includes versatile electric motors for various applications and high-efficiency pulping and grinding machines, along with precision mechanical components and electrical accessories.

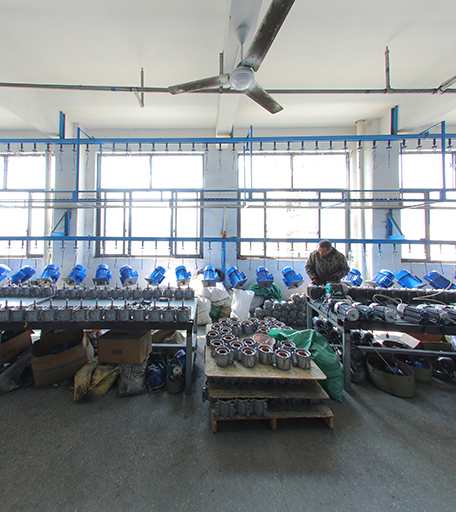

At our state-of-the-art production facilities, we ensure consistent quality through advanced automated manufacturing technologies complemented by proprietary varnish-dipping processes. As one of China's premier multi-category mechanical manufacturing bases, we seamlessly integrate design, production, and global trade operations to deliver complete solutions.

With proactive market expansion strategies, we have established strong footholds across emerging markets, including Southeast Asia, the Middle East, and Africa. Our annual production capacity exceeds 500,000 units of various motors, serving clients in Brazil, Thailand, Laos, the Philippines, Indonesia, and multiple African nations. Trusted by agricultural machinery distributors and industrial equipment suppliers and recognized as a key supplier in China for Fortune Global 500 corporations, we maintain strategic partnerships across industries.

Driven by engineering excellence and innovation, Wenling Guanfeng remains committed to delivering premium-quality motors and mechanical solutions worldwide, continuously setting new benchmarks in industrial manufacturing.
