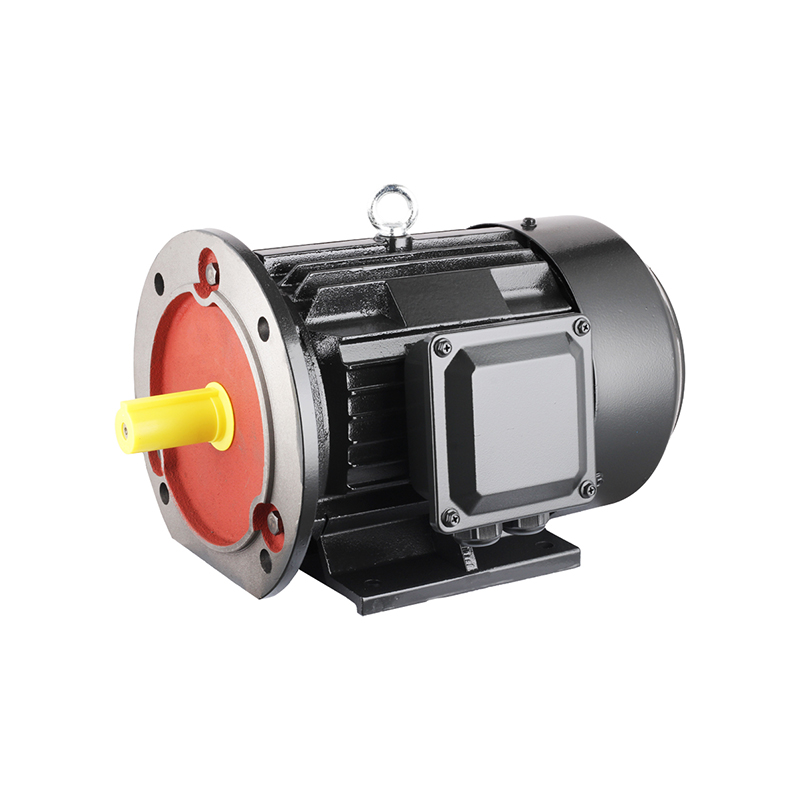

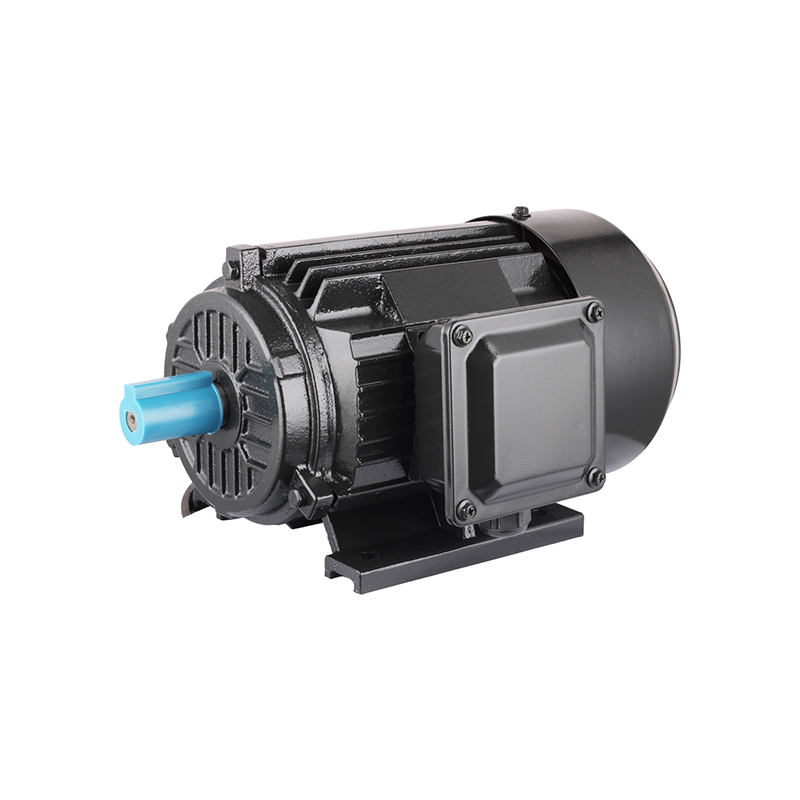

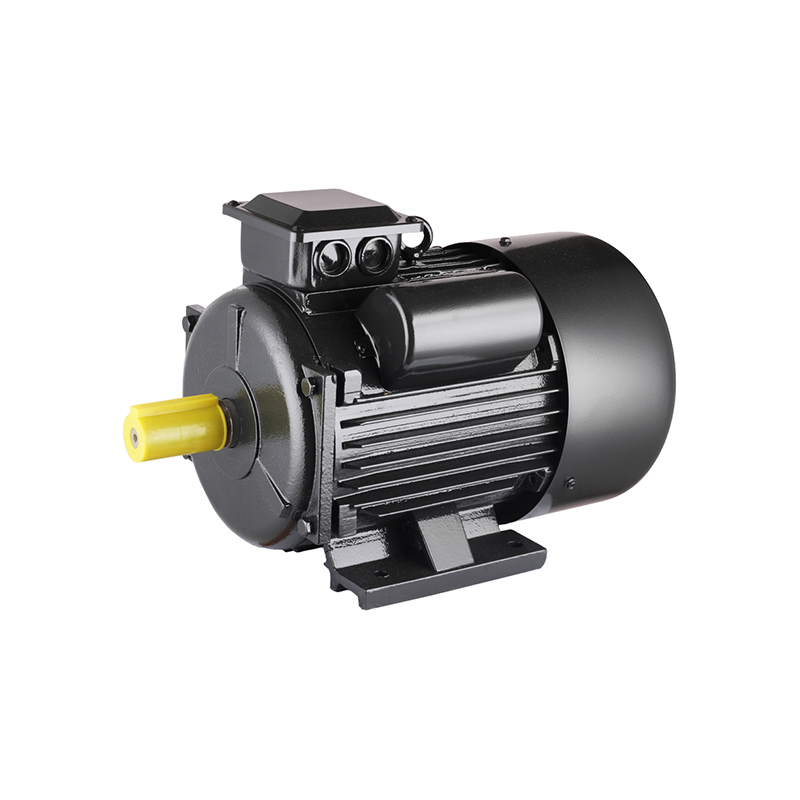

Basic Knowledge of Three-Phase Asynchronous Motors

The 3 phase asynchronous induction motor is a widely used type of electric motor found in various industrial and commercial applications. It operates on the principle of electromagnetic induction, converting electrical energy into mechanical energy without the need for physical electrical connections to the rotor. Its design and performance characteristics make it suitable for environments requiring consistent and reliable operation.

The 3 phase asynchronous motor is powered by a three-phase alternating current (AC) power source. When the stator windings are energized by the three-phase AC supply, they produce a rotating magnetic field. This rotating field induces an electric current in the rotor due to the principle of electromagnetic induction. The interaction between the stator’s magnetic field and the induced current in the rotor generates torque, causing the rotor to turn.

This type of motor is called “asynchronous” because the rotor never reaches the speed of the stator’s rotating magnetic field. Instead, it lags slightly behind. This difference in speed, known as “slip,” is essential for the induction of current in the rotor and the generation of torque.

The main components of a 3 phase asynchronous induction motor include:

Stator: This is the stationary part of the motor that contains windings connected to the power supply. It generates the rotating magnetic field.

Rotor: The rotating part of the motor, which can be of either the squirrel cage or wound type.

Frame and Housing: These provide mechanical support and protect internal parts.

Bearings: These allow the rotor to spin smoothly within the stator.

End Shields and Fan: The end shields support the bearings, and the fan helps dissipate heat during operation.

There are two main rotor types used in 3 phase asynchronous motors:

Squirrel Cage Rotor: This is the more commonly used type due to its simple and rugged construction. It consists of bars short-circuited by end rings.

Wound Rotor: This type features windings connected to external resistors or controllers, allowing for better torque control, especially during startup.

Due to their robust nature and relatively low maintenance requirements, 3 phase asynchronous induction motors are found in a broad range of applications. These include:

Pumps and fans

Compressors

Conveyor systems

Industrial machines

HVAC systems

They are often chosen for tasks that require continuous and steady operation over long periods.

This motor type offers several benefits:

Simple construction and fewer components, which can reduce maintenance needs.

Reliable operation under various environmental conditions.

Capability to start under load and maintain stable performance.

Efficient use of electrical power in medium to high-load applications.

When selecting or operating a 3 phase asynchronous induction motor, several factors should be considered, such as:

Load requirements: The motor should be matched to the application’s load characteristics.

Power supply: Compatibility with the voltage and frequency of the available electrical supply is essential.

Thermal management: Adequate ventilation or cooling is needed to avoid overheating during continuous use.

The 3 phase asynchronous induction motor plays an important role in modern electric motor systems. Its principle of operation, coupled with straightforward construction and dependable performance, makes it a good choice in a variety of fields. While it may not be ideal for every specialized need, it provides a well-balanced solution for many common industrial and commercial applications.
